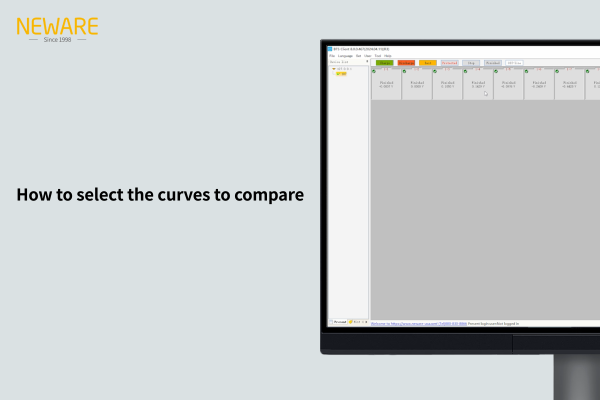

How to select the curves to compare

Latest updated: Dec 14, 2023
Video recording version: 8.0.0.502, compatible with BTSDA 8.0 software.

Today, we will demonstrate how to add multiple data files for comparison.


  • To select the curves for comparison in BTSDA software, open a BTSDA data and click on the "Curve comparison" option in the toolbar.

  • Then, use the "+" button to add multiple test curves.

  • Finally, check the data that you want to compare from the available options below.


That wraps up the entire demonstration. Thanks for watching.

This operation video tutorial is applicable to the following products:
● CT-4000 Battery Testing System Series (CT-4008Q-5V100mA, CT-4008Q-5V6A-S1, CT-4008Q-5V6A-164, CT-4008Q-5V12A-S1, CT-4008Q-5V12A-164, etc.)
● CE-6000 Battery Testing System Series (Cell, Module, Pack, etc.)
● CT/CTE-8000 Battery Testing System Series (CT-8002Q-5V100mA, CTE-8008-5V200A, etc.)
● All-in-One Battery Testing System Series (WHW-25L-S-16CH, WIHW-200-160CH-B, WHW-100L-2-160CH, WHW-500L-5V6A80CH-380V, WGDW-380L-2-40BFC-5V600A8CH, etc.)
