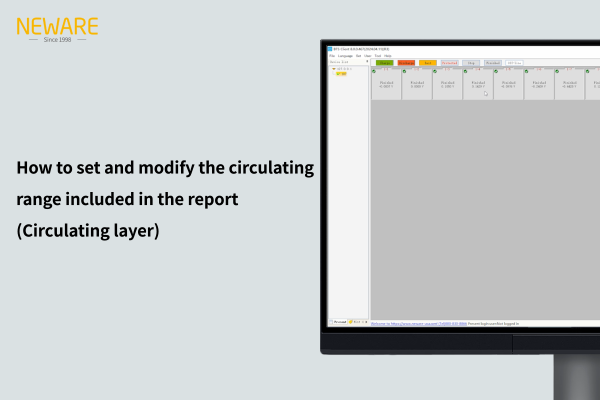

How to set and modify the circulating range included in the report (Circulating

Latest updated: Dec 15, 2023
Video recording version: 8.0.0.477, compatible with BTSDA 8.0 software.

Today, we will demonstrate how to set and modify the loop range (loop layer) included in a customize report.


  • First, open the BTSDA data and click on the "Export report" tool in the toolbar above.

  • Then, click on "Customize report" and select the "Circulating layer" option to modify the circulating range included in the exported report.


That wraps up the entire demonstration. Thanks for watching!

This operation video tutorial is applicable to the following products:
● CT-4000 Battery Testing System Series (CT-4008Q-5V100mA, CT-4008Q-5V6A-S1, CT-4008Q-5V6A-164, CT-4008Q-5V12A-S1, CT-4008Q-5V12A-164, etc.)
● CE-6000 Battery Testing System Series (Cell, Module, Pack, etc.)
● CT/CTE-8000 Battery Testing System Series (CT-8002Q-5V100mA, CTE-8008-5V200A, etc.)
● All-in-One Battery Testing System Series (WHW-25L-S-16CH, WIHW-200-160CH-B, WHW-100L-2-160CH, WHW-500L-5V6A80CH-380V, WGDW-380L-2-40BFC-5V600A8CH, etc.)
