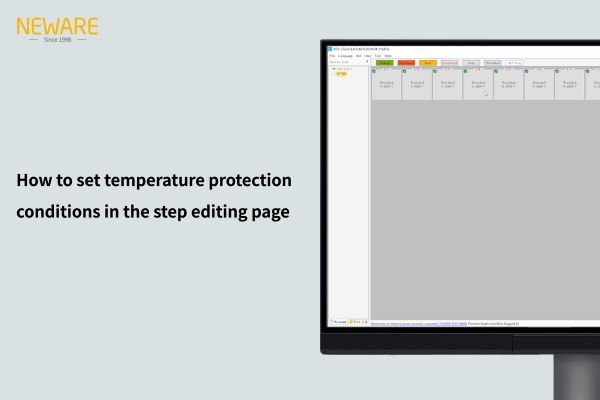

How to set temperature protection conditions in the step editing page

Latest updated: Dec 15, 2023
Video recording version: 8.0.0.483, compatible with BTS 8.0 software.

Today,we will demonstrate how to set up temperature chamber protection conditions.


  • Open the BTS software. In the step editing page, right-click on the test channel and click on "Single start". Click on the "BDC" option at the bottom. This will allow you to set conditions for the Main channel, Aux channels, and the Temperature chamber.

  • Click on "Temperature chamber" to access the settings for temperature protection. Here, you can set the upper and lower temperature limits for the temperature chamber protection.


That wraps up the entire demonstration. Thanks for watching.

This operation video tutorial is applicable to the following products:
● CT-4000 Battery Testing System Series (CT-4008Q-5V100mA, CT-4008Q-5V6A-S1, CT-4008Q-5V6A-164, CT-4008Q-5V12A-S1, CT-4008Q-5V12A-164, etc.)
● CE-6000 Battery Testing System Series (Cell, Module, Pack, etc.)
● CT/CTE-8000 Battery Testing System Series (CT-8002Q-5V100mA, CTE-8008-5V200A, etc.)
● All-in-One Battery Testing System Series (WHW-25L-S-16CH, WIHW-200-160CH-B, WHW-100L-2-160CH, WHW-500L-5V6A80CH-380V, WGDW-380L-2-40BFC-5V600A8CH, etc.)
