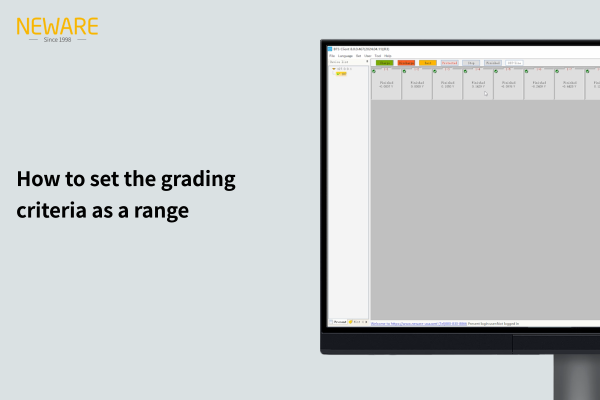

How to set the grading criteria as a range

Latest updated: Dec 15, 2023
Video recording version: 8.0.0.483, compatible with BTS 8.0 software.

Here is an explanation on how to set the sorting interval.


  • Open the BTS software. Assuming the batteries have been tested, proceed to grade the batteries that have completed testing.

  • Click on the icon in the top right corner and select "Grading."

  • Under the relevant conditions, set the grading range by clicking on the right-click menu anywhere on the screen and selecting "Add sorting interval".

  • Choose the parameter type for grading and set the minimum and maximum values for the range, as well as the number of levels or grades.

  • After clicking OK, you will see the range divided into several grades.


That wraps up the entire demonstration. Thanks for watching.

This operation video tutorial is applicable to the following products:
● CT-4000 Battery Testing System Series (CT-4008Q-5V100mA, CT-4008Q-5V6A-S1, CT-4008Q-5V6A-164, CT-4008Q-5V12A-S1, CT-4008Q-5V12A-164, etc.)
● CE-6000 Battery Testing System Series (Cell, Module, Pack, etc.)
● CT/CTE-8000 Battery Testing System Series (CT-8002Q-5V100mA, CTE-8008-5V200A, etc.)
● All-in-One Battery Testing System Series (WHW-25L-S-16CH, WIHW-200-160CH-B, WHW-100L-2-160CH, WHW-500L-5V6A80CH-380V, WGDW-380L-2-40BFC-5V600A8CH, etc.)
