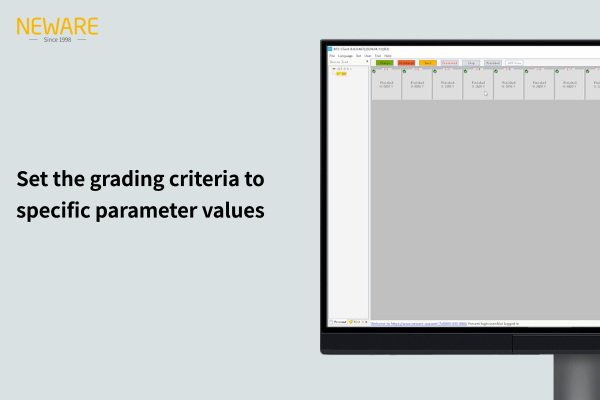

Set the grading criteria to specific parameter values

Latest updated: Dec 15, 2023
Video recording version: 8.0.0.483, compatible with BTS 8.0 software.

Here is an demonstration on how to set specific parameter values for grading criteria.


  • Open the BTS software. Assuming the batteries have been tested, proceed to grade the batteries that have completed testing.

  • Click on the icon in the top right corner and select "Grading".

  • Set the grading intervals based on the desired criteria, such as discharge capacity.

  • Click on the "Grading" button at the bottom to view the results.


That wraps up the entire demonstration. Thanks for watching.

This operation video tutorial is applicable to the following products:
● CT-4000 Battery Testing System Series (CT-4008Q-5V100mA, CT-4008Q-5V6A-S1, CT-4008Q-5V6A-164, CT-4008Q-5V12A-S1, CT-4008Q-5V12A-164, etc.)
● CE-6000 Battery Testing System Series (Cell, Module, Pack, etc.)
● CT/CTE-8000 Battery Testing System Series (CT-8002Q-5V100mA, CTE-8008-5V200A, etc.)
● All-in-One Battery Testing System Series (WHW-25L-S-16CH, WIHW-200-160CH-B, WHW-100L-2-160CH, WHW-500L-5V6A80CH-380V, WGDW-380L-2-40BFC-5V600A8CH, etc.)
