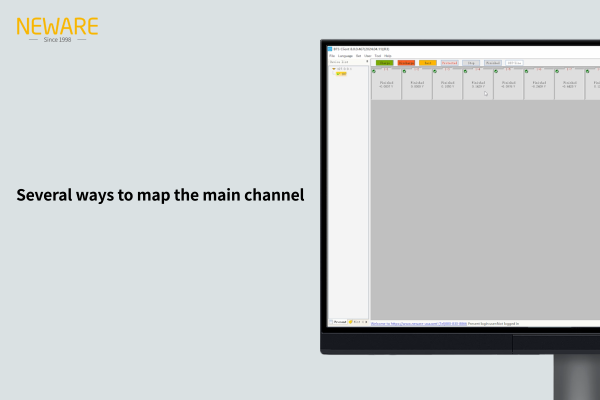

Several ways to map the main channel

Latest updated: Dec 22, 2023
Video recording version: 8.0.0.483, BTS 8.0

Today, we demonstrate several mapping methods of the main channel.


  • First, open the BTS8.0 software.

  • Right-click on the channel and select "Reset mapping".

  • Enter the reset mapping interface.

  • The first is the default mapping, right-click on the standalone and select "Clear all".

  • Right-click again, select the main channel default mapping, select the desired arrangement.

  • The second one is customized mapping, the operation is the same as above.

  • Right-click on the stand-alone machine and select "Clear all", right-click again and select "Default mapping" of "Main channels".

  • Right-click again, select the "Main CH default mapping",and then select "Customize".

  • The third type is drag-and-drop mapping.

  • Select the main channel on the left.

  • Click the left mouse button to drag and drop directly to our 1-1 position.


That is all about this topic.Thanks for watching!

This operation video tutorial is applicable to the following products:
● CT-4000 Battery Testing System Series (CT-4008Q-5V100mA, CT-4008Q-5V6A-S1, CT-4008Q-5V6A-164, CT-4008Q-5V12A-S1, CT-4008Q-5V12A-164, etc.)
● CE-6000 Battery Testing System Series (Cell, Module, Pack, etc.)
● CT/CTE-8000 Battery Testing System Series (CT-8002Q-5V100mA, CTE-8008-5V200A, etc.)
● All-in-One Battery Testing System Series (WHW-25L-S-16CH, WIHW-200-160CH-B, WHW-100L-2-160CH, WHW-500L-5V6A80CH-380V, WGDW-380L-2-40BFC-5V600A8CH, etc.)
