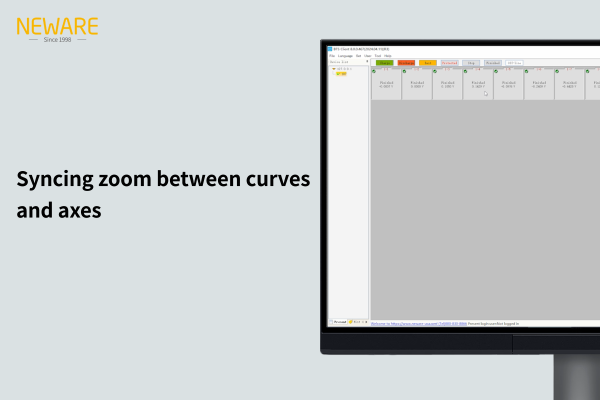

Syncing zoom between curves and axes

Latest updated: Dec 07, 2023
Video recording version: 8.0.0.477, compatible with BTSDA 8.0 software

Today, we will demonstrate how to synchronize zooming of curves with the axes.


  • To begin, open a test data and navigate to the graph interface.

  • Simply scroll the mouse wheel while hovering over the graph, and you will see the curves and axes zooming in or out simultaneously.


That wraps up the entire demonstration. Thanks for watching!

This operation video tutorial is applicable to the following products:
● CT-4000 Battery Testing System Series (CT-4008Q-5V100mA, CT-4008Q-5V6A-S1, CT-4008Q-5V6A-164, CT-4008Q-5V12A-S1, CT-4008Q-5V12A-164, etc.)
● CE-6000 Battery Testing System Series (Cell, Module, Pack, etc.)
● CT/CTE-8000 Battery Testing System Series (CT-8002Q-5V100mA, CTE-8008-5V200A, etc.)
● All-in-One Battery Testing System Series (WHW-25L-S-16CH, WIHW-200-160CH-B, WHW-100L-2-160CH, WHW-500L-5V6A80CH-380V, WGDW-380L-2-40BFC-5V600A8CH, etc.)
