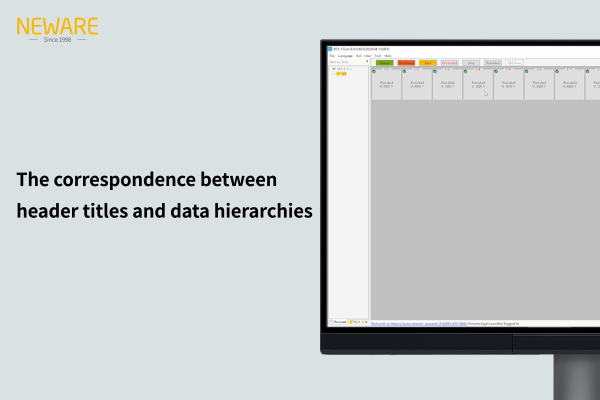

The correspondence between header titles and data hierarchies

Latest updated: Dec 07, 2023
Video recording version: 8.0.0.477, compatible with BTSDA 8.0 software

Today, we will demonstratethe correspondence between header titles and data hierarchy.


  • In the right-side data interface, the cycle layer data allows you to view cycleindex and charge/discharge specific capacity data.

  • By clicking on the step layer data, you can view step-related data such as step type and voltage range.

  • Clicking on the record layer data will allow you to access detailed information on data records.


That wraps up the entire demonstration. Thanks for watching!

This operation video tutorial is applicable to the following products:
● CT-4000 Battery Testing System Series (CT-4008Q-5V100mA, CT-4008Q-5V6A-S1, CT-4008Q-5V6A-164, CT-4008Q-5V12A-S1, CT-4008Q-5V12A-164, etc.)
● CE-6000 Battery Testing System Series (Cell, Module, Pack, etc.)
● CT/CTE-8000 Battery Testing System Series (CT-8002Q-5V100mA, CTE-8008-5V200A, etc.)
● All-in-One Battery Testing System Series (WHW-25L-S-16CH, WIHW-200-160CH-B, WHW-100L-2-160CH, WHW-500L-5V6A80CH-380V, WGDW-380L-2-40BFC-5V600A8CH, etc.)
