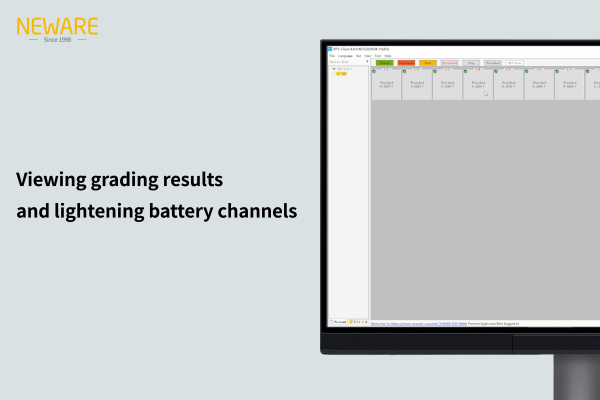

Viewing grading results and lightening battery channels

Latest updated: Dec 15, 2023
Video recording version: 8.0.0.483, compatible with BTS 8.0 software.

Here is an explanation on how to view the grading results and lighten battery channels.


  • Open the BTS software. Grade the tested batteries by clicking on the small icon in the top right corner to open the grading interface.

  • Set the grading criteria within the grading interface. After setting the criteria, click on the "Grading" button at the bottom to complete the grading process and view the grading results.

  • To activate the battery channel lights for a specific grade range, click on the corresponding range and click on the "Lighten channels" option. This will illuminate the battery channel associated with that range.


That wraps up the entire demonstration. Thanks for watching.

This operation video tutorial is applicable to the following products:
● CT-4000 Battery Testing System Series (CT-4008Q-5V100mA, CT-4008Q-5V6A-S1, CT-4008Q-5V6A-164, CT-4008Q-5V12A-S1, CT-4008Q-5V12A-164, etc.)
● CE-6000 Battery Testing System Series (Cell, Module, Pack, etc.)
● CT/CTE-8000 Battery Testing System Series (CT-8002Q-5V100mA, CTE-8008-5V200A, etc.)
● All-in-One Battery Testing System Series (WHW-25L-S-16CH, WIHW-200-160CH-B, WHW-100L-2-160CH, WHW-500L-5V6A80CH-380V, WGDW-380L-2-40BFC-5V600A8CH, etc.)
